Sparkler Filter Press

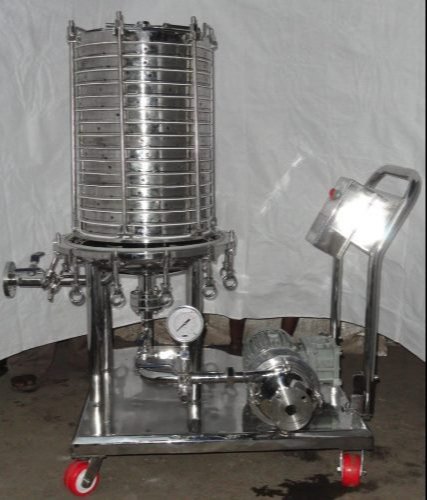

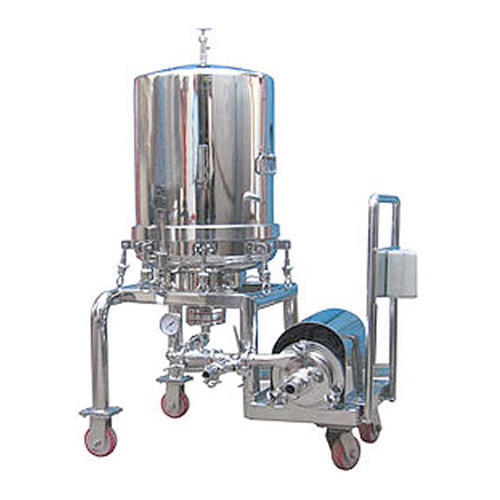

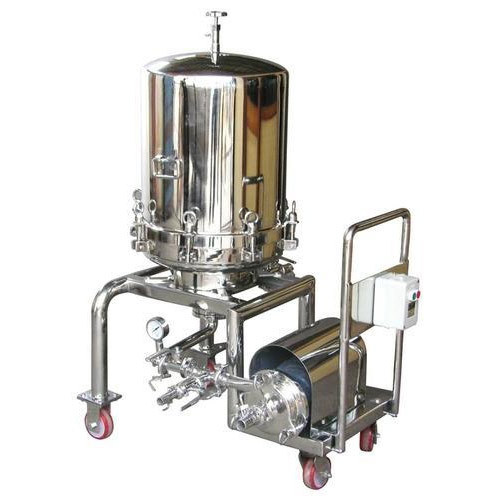

Sparkler Filter Press (Zero Hold Up Filter Press )

Aryan Engineers is a leading manufacturer, supplier, exporter of Sparkler Filter Press in Ahmedabad, Gujarat, India

The Aryan’s Reverse Flow Model filter press  (Zero Hold Up Filter Press ) is designed for polishing and for security filtration of liquids with limited solid contents.  Sparkler Filter Press  Design features include: Maximum cake stability, Ability for intermittent operation, Complete recovery of product, No unfiltered hold-over, and Perfect sealing of filter media by tie rod compression at center and periphery of all filter plates.
Complying cGMP norms, Modular structure, Top Dom construction for easy removal of cartridge assembly. Sparkler Filter Press (Zero Hold Up Filter Press ) is compatible with any kind of filter media and all types of filter aids. Even distribution of cake assuring economical operation and uniform clarity.  All Horizontal Filter Press Vessels can be supplied with a heating or cooling jacket. Available size are 8”, 14’, 18”, 24”. They consist of Type 316 / 304 stainless steel.

Since the filtering surface of the Sparkler Reverse Horizontal Plate Filter is in the same position of the standard horizontal plate filter, it offers all of the stable filtering features as the standard horizontal plate filter.  Advantages to the Reverse Flow design are that:  the filter vessel only comes in contact with filtered product leaving the tank clean; internal filter plate cartridge assembly fully contains cake;   complete recovery of product by chasing or gas blow down;  cartridge parts can be assembled in a take-apart fashion so that it can be used in a sanitary service.

HORIZONTAL PLATE CLOSED FILTER Press

Working :

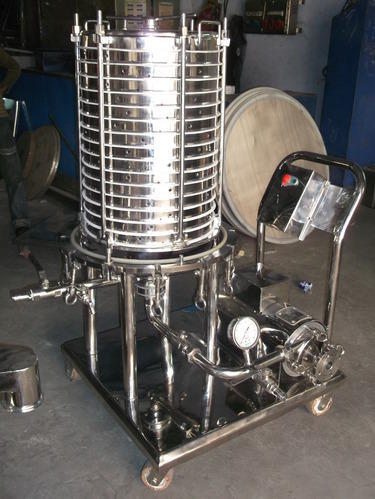

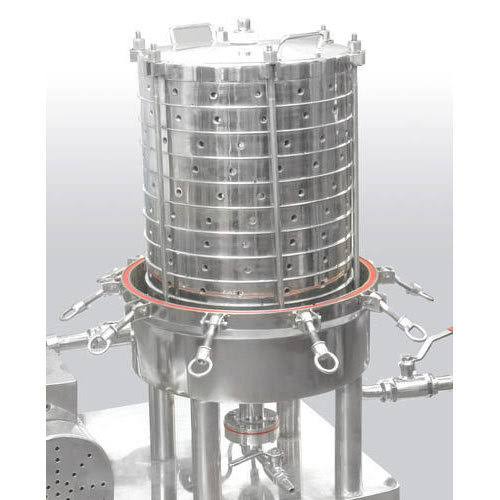

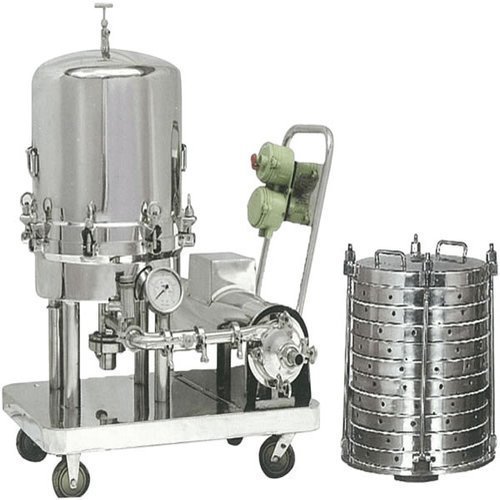

The Cartridge  assembly consists of plates with inter locking cups, plate rings, perforated screens and filter media  arranged one above other, forms single pipeline. The unfiltered liquid is centrally fed under pressure from bottom inlet. The liquid spreads out equally on each plate fitted with filter media. Solids remain on the filter media and clear filtrate flows through Holes on the supporting ring and  flows towards the shell, which is led out through outlet pipe line. In the process, solids are evenly distributed on each plate. At the end of cycle the cake can be dried by applying air or N2 or any inherent gas.

Sparkler Filter Press Advantages :

• Complying cGMP norms
• Single pass filtration with no solids bypass.
• Full batch recovery, no separate scavenging system needed.
• Proper sealing from centre and periphery which allows the proper   filtration of volatile, toxic and inflammable products.
• Modular Construction ensures easy Maintenance and Handling
• Top Dom construction for easy removal of cartridge assembly.
• Sanitary Construction
• Zero Hold Up

Central feeding ensures :

• No solid remains inside the vessel.
• Complete recovery of liquids.
• Cake solids can be dried with N₂.
• Complete cake retains over the plate.
• Uniform distribution of cake on each plate.
• Uniform filter-aid bed can be formed.
• Reduces the cost of expensive solvents.

Closed system ensures :

• Filtration of toxic,hazardous,explosive materials.
• Efficiently cleaned and sterilized.

Plate Pack Arrangement Ensures:

• Any type of filtering media singularly or in combination,can be used to achive required micron efficiency.
• Easy removal and cleaning of the carttridge assembly.

Sparkler Filter Press (Zero Hold Up Filter Press ) Applications:

Pharmaceutical, Food, Chemicals, Sugar, Distilleries, Oil, Dairy, Beverages, Breweries, Fine Chemicals,  Perfumers, Resins, Paints, Varnishes, Polymers, etc Industries, Activated Carbon, Hyflow application.

The values of “Flow-Rates” mentioned in technical specification sheet have been estimated for the following operating parameters:

1. Fluid : Water
2. Insoluble : Carbon
3. Filter media : Non-woven polypropylene cloth of 115 grade.
4. d. Carbon loading : 5 kg/m² filtration area.

The actual flow-rate will be differ from the estimated value depending on the variables factors like pump, product, filter media, viscosity, Impurities, Temperature etc. Available Filter Plate Materials – SS 316 / SS 304 / Any Special Material Available Filter Housing Materials – SS 316 / SS 304 / Any Special Material Our Filter Press can by used with any Filter Media available in the market like Filter Paper, Non woven and Woven Filte cloth, Membrane  etc

 Sparkler Filter Press

(Zero Hold Up Filter Press )
